RFID Single Tag/Card UV Printing, Reading and Writing, Detecting Machine
info@focusrfid.com
+8618560195575Introduction
1. The equipment is used in single tag tag card issuance, printing, reading and writing detection and finished product collection.
2. The seven-word structure is used to collect materials and shorten the length space.
Features
1.The accuracy of the pile points is 100%
2.Contains EPC detection function, which can remove tags with functional problems.
3.The machine will not cause damage to the cards such as scratches and paper jams during operation.
4.The running speed of the machine is less than 22,000 pcs/h (calculated by 49*114*0.5mm specification).
5. Manual feeding, a storage height of 300mm (if the card is heavy, the number of too many may cause card scratches, according to the actual card to determine the number of cards placed)
6. Automatic counting of good products, automatic stacking;
Technical Specification
| Type of project | Parameters | Remarks |
|---|---|---|
| Overall dimensions | (L) 4100 x (W) 1300 x (H) 1700 mm | The detailed dimensions are subject to the structural design |
| Weight | Whichever is actual | |
| Power supply | AC380V 50/60Hz | Does not include transformer for conversion to Indian voltage |
| Power | About 7KW | |
| Air source | 0.6 Mpa | |
| Printing head | 54mm nozzle from Ricoh G5 | |
| Control system | PC | |
| Equipment capacity | UPH=22K (calculated in 49*114*0.5mm specifications) | |
| Applicable product specifications | HT: 40×100mm, 40×120mm, 40×140mm, 40×160mm; WT: 79×176, 79×145, 79×114mm; GU: 37×110mm, 37×130mm |

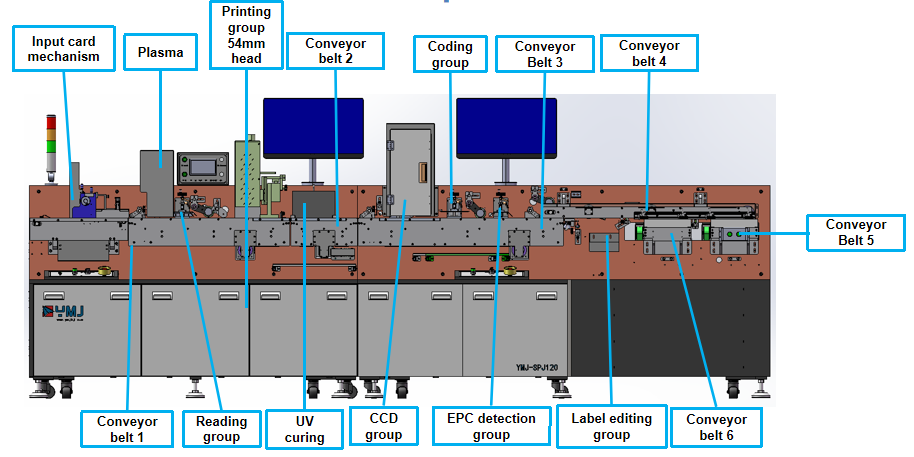

Machine Working Process
Dimension
-
