RFID Reel Label UV Printing, Reading and Encoding, Detecting Machine Model:YMJ-LP30

General Descriptions

RFID Reel Label UV Printing ,Encoding and Detecting Machine is an electronic label inkjet + data read and write detection equipment; It is specially designed for high-speed printing, reading, coding and detection of single row roll-to-roll electronic label products. According to production requirements, this device also includes the following functions:

  • Tag pitch setting function;
  • Continuous bad label, empty label setting alarm function;
  • Missing material detection function;
  • Production target speed setting function;



Contact Us Now for Samples !!!

info@focusrfid.com +8618560195575

Product Detail

Product Tags

Introduction

RFID Reel Label UV Printing ,Encoding and Detecting Machine is an electronic label inkjet + data read and write detection equipment; It is specially designed for high-speed printing, reading, coding and detection of single row roll-to-roll electronic label products.

Features

  1. Suitable for PET, paper (thermal paper, release paper, silicone oil paper);
  2. Suitable for rolled 2, 3, 4 layers die-cut electronic labels or Wet;
  3. Suitable for mark point label inkjet and read and write;
  4. Mark point identification requirements: conventional square 6*8mm;
  5. Support minimum 2*3mm; Round diameter 3-8mm;

Technical Specification

Dimensions of the whole machine About L3700mm x W900mm x H2000mm Liner specification Thickness: 0.05-0.25mm (where the carrier is die cut too deep with knife marks should not run high-speed production or serious can not be produced in this machine); Bottom paper width: 25-150mm
Weight About 1000kg Label specification (Label & Wet Inlay) 20mm ≤ CD ≤ 54mm; Thickness: PET 0.12-0.56mm, paper 0.17-0.65mm
Power Supply Single phase 220V 50/60HZ 18A Corrector accuracy + / - 0.15 mm
Power About 6.5KW Pass rate 99.7% or higher
Air Source 0.6 to 0.8MPa Electrostatic range ≤2KV
Air consumption About 20L/MIN Noise range Decibels ≤ 80 DB
Control system PC+ motion control card UPS protection Protect the main control for about 10 minutes
Feed width 25 ~ 150 mm Incoming Mark point requirements Regular square 6*8mm; Supports a minimum of 2*3mm; Round diameter 3-8mm
Applicable material
Material: PET, paper (thermal paper, pressure sensitive paper, copper sheet paper, release paper)
Suitable for rolled 2, 3, 4 layers die-cut electronic label or Wet
Suitable for mark point label inkjet and read and write; Mark point identification requirements: conventional square 6*8mm; Support minimum 2*3mm; Round diameter 3-8mm
 Verify Mark print specifications
Regular square 6*8mm
Supports a minimum of 2*3mm
Round diameter 3-8mm (optional for easy adjustment)
Speed Approx. 20m/min, UPH Max40000pcs/h (varies depending on length, width, skip and type of tag) Print head width 54mm (106mm is optional)
Maximum roll diameter of the material Max 500mm
Reel inside diameter 76.2mm
Maximum load-bearing capacity of the inflatable shaft 75KG

Machine Working Process

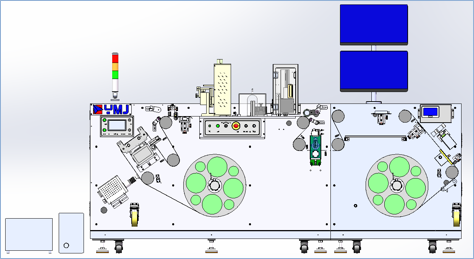

Dimension
