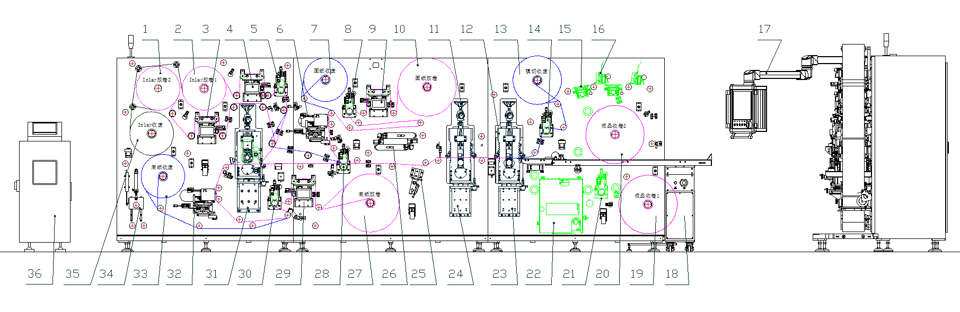

RFID Converting Machine Model Model: CM75+2

General Descriptions

This machine is a dual-channel (featuring two inlay feeding shafts) compound die-cutting machine equipped with dual die-cutting units.

Multi-functional compounding system capable of producing the following types of RFID products: fragile anti-counterfeit RFID labels, medical RFID labels, RFID wristbands, RFID airline baggage tags, RFID clothing hang tags, and RFID self-adhesive labels.

Send email to us

info@focusrfid.com

+8618560195575

Product Detail

Product Tags

Introduction

1. The CM75 compound machine is designed for the roll-to-roll lamination and die-cutting of three-layer electronic tags, accommodating both "dry" and "wet" inlays.
2. The lamination and die-cutting of products involving either aligned or non-aligned inlays and printed layers can be configured solely via software settings (utilizing automatic mark-tracking and compensation functions).
3. The machine integrates multiple processes into a single unit: web breaking, transfer lamination, inline adhesive coating, compounding, die-cutting, and slitting.
4. It is suitable for the production of narrow-web labels, paper cards, hang tags, and similar products.

Features

1. Independent dual-channel inlay unwinding
2. Multi-point web guiding and alignment
3..Dry inlay cutting
4. Wet inlay transfer/lamination
5. Automatic registration of three material layers (liner, face stock, and inlay)
6.Dual die-cutting stations
7.Eco-friendly waste matrix rewinding
8.Finished product sheet collection platform (for cards, hang tags)
9.Large-screen touch-panel interface
10.Programmable automatic adhesive application system

Technical Specification

Machine size	About L7200mm * W1480mm (MAX2880mm) * H2252mm (including indicator light)	Accuracy of the web guider	+ / - 0.15 mm
Weight	About 4500KG	Strip and insertion accuracy	MD±0.5mm CD±0.5mm
Power supply	Three-phase five-wire AC380V 50/60HZ 73A	Upsize accuracy	MD±0.3mm CD±0.5mm
Power	About 28KW	Upsize + insertion accuracy	MD±0.5mm CD±0.5mm
Air source / Air consumption	About 300L/MIN / 6KG/CM²	Laminated accuracy	+ / - 0.3 mm
Control system	Huichuan	Die cutting accuracy	MD±0.3mm; CD + / - 0.5 mm
Equipment capacity	2 layer / 3 layer lamination die cutting speed: Max 75m/min Dry inlay upsize or insertion speed: Max 60m/min Wet inlay labeling speed: Max 40m/min Set label lamination (tracing) speed: Max 60m/min	Slitting accuracy	+ / - 0.3 mm
Failure rate requirements	The machine must have a downtime of < 5%; The average time between failures should be 168 hours, and failures cannot be recovered in more than 5 minutes	ESD	≤ 2.0KV at inlay, ≤ 4KV after lamination
Equipment yield	99.7%	UPS	Protect the master controller for about 10 minutes
Noise	≤ 80DB
Applicable product materials	Suitable for PET, paper (thermal paper, pressure sensitive paper, copper paper, white cardboard, etc.), nylon, forged plastic, PP, fiber, polyethylene; Dry INLAY or wet INLAY (antenna material: aluminum, copper, silver)
Applicable product specifications	Wet inlay spacing: 22.225~150mm, Dry inlay spacing: 18~150mm Bottom paper layer thickness: 0.05~0.27mm, PET paper thickness >30μm, 0.12~0.52mm / Suitable width after lamination: 30~220mm
