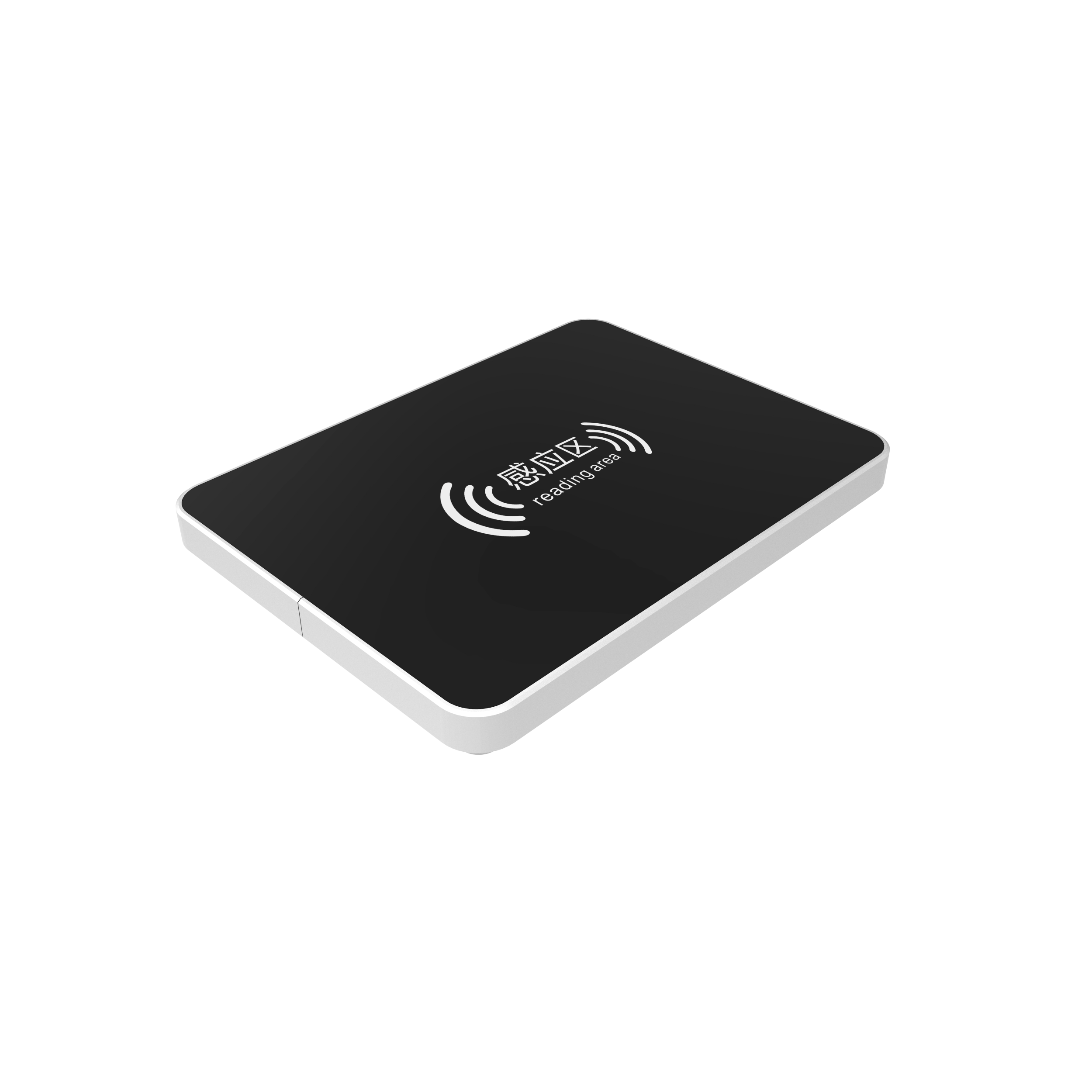

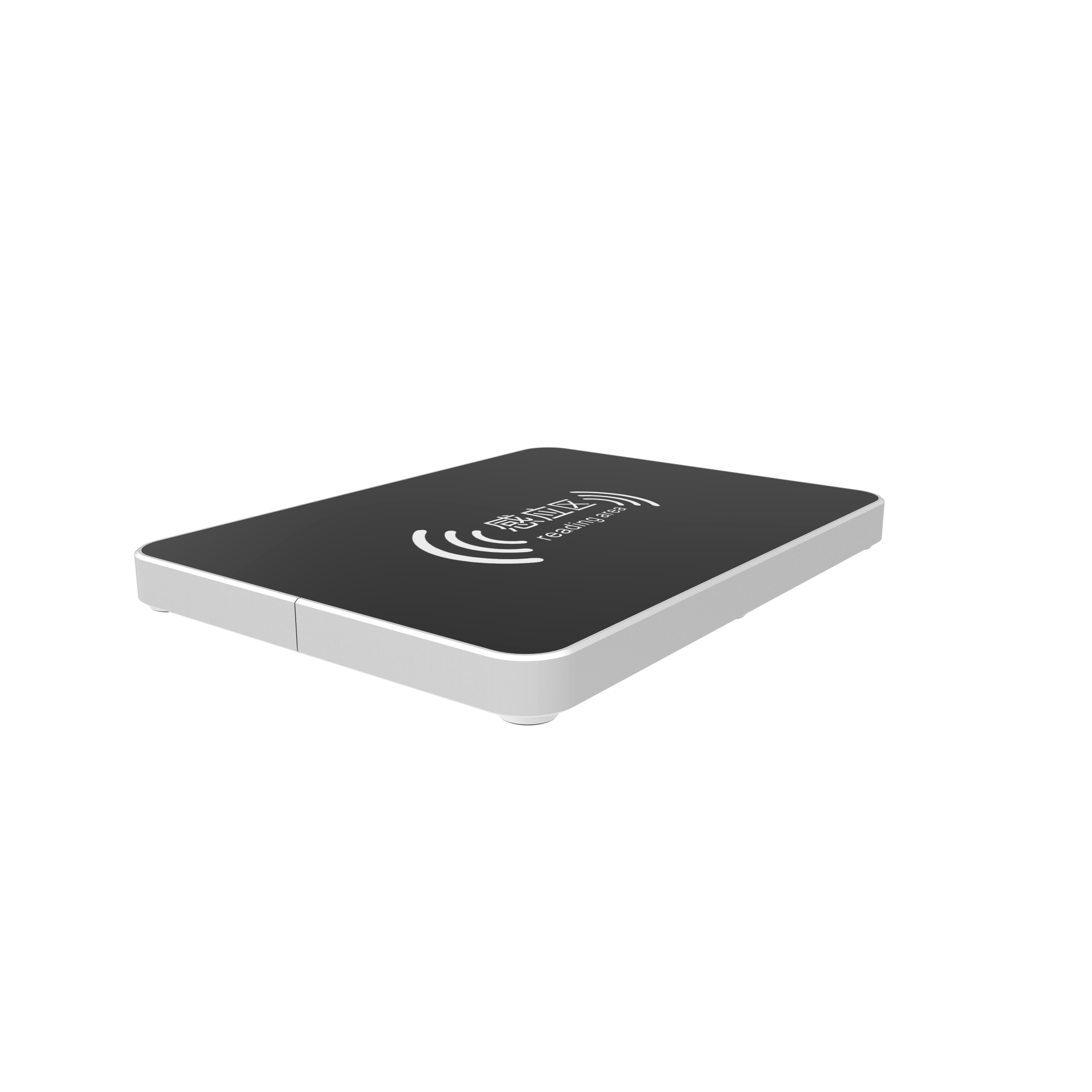

UHF RFID Table Reader Model: ST-TR5
Introduction
ST-TB5 is a desktop UHF RFID reader. It can be used as a library workstation and it also helps in other occasion that needs reading and writing RFID tags.
It uses Impinj R2000 high-performance RFID chip, supports ISO18000-6C protocol and supports multi-tag reading and writing.
It is also equipped with serial and Ethernet communication. Connected with a computer and then you can read/write the tags.
Features
Powered by Impinj R2000 RFID chip for maximum tag detection.
Serial /Ethernet communication
Multiple frequency band:China, Europe, the United States, Japan and other different frequency bands, GB 920MHz-925MHz, 840MHz-845MHz; FCC 902MHz-928MHz; ETSI865MHz-868MHz; JP 916MHz-920MHz;
Reading radius: 30cm adjustable.
Technical Specification
| Main Specifications | ||
| Model | ST-TB5 | |
| Performance Specifications | ||
| Frequency range | 840-960 MHz | |
| Protocol | ISO 18000-6C/EPC C1G2 | |
| RFID chip | Impinj R2000 | |
| Reading speed | ≥40 tags/s | |
| Reading mode | intensive reading and writing | |
| Reading radius | 300mm | |
| Reading range | 0-30cm | |
| Antenna | near field | |
| Input power | 0~33 dBm | |
| Physical Specifications | ||
| Dimension | 520*402*26.8mm | |
| Material | Aluminum frame and glass panel | |
| Communication interface | Serial port | |
| Weight | 10kg | |
| Operating environment | ||
| Working temperature | 0~60℃ | |
| Working humidity | ＜95%（+25℃） | |
Dimension
